Examples: 40°/135°

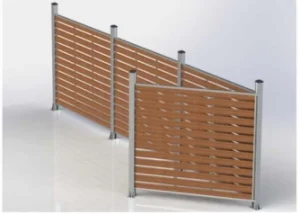

Fences with 40° Intersection Angle

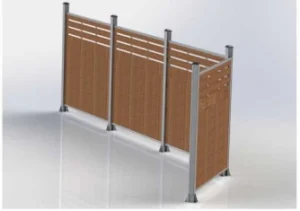

Fences with 135° Intersection Angle

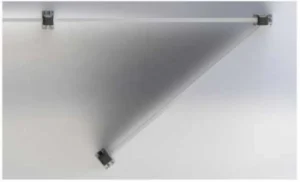

When the intersection angle is less than 90°, install at the adjacent side.

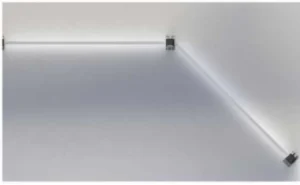

When the intersection angle is greater than 90°, install at the adjacent side or the opposite side.
Corner Accessory
Installation Procedure

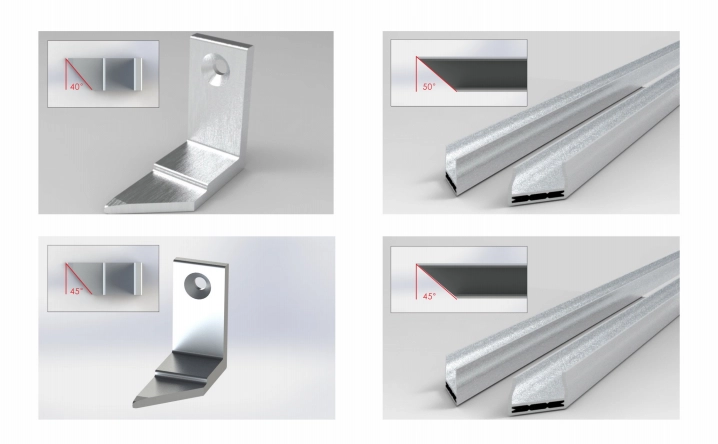

Step 1–Cut the corner brace and rail according to the intersection angle.

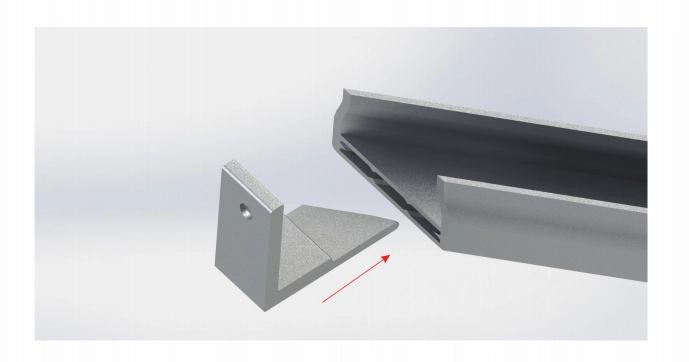

Step 2-Hammer the corner brace into the rail.

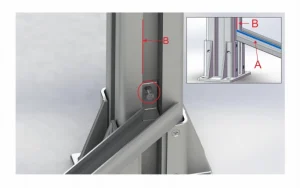

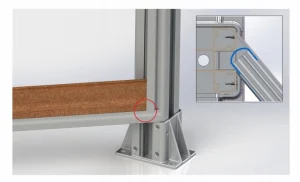

Step 3-Fix bottom rail with the corner brace to the post with screws (make the Aside of the rail close to the B side of the post)position with U rail.

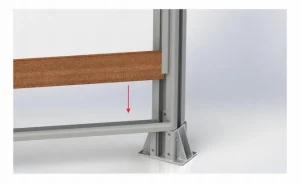

Step 4-Stick the fence board in the groove of the U rail and side both part through the groove of the post to the bottom rail. Fix the position with U rail.
Step 5-Fix the U rail onto the post with 2 or 3 screws.
Step 6-Install fence boards according to the regular installation guide.

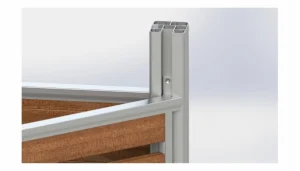

Step 7-Refer to step 1,2 and finish the installation of the top rail. Please notice the corner brace is upwards.
Step 8-Install other accessories according to the regular installation guide.
Reference Products(Click Here to Check Now)

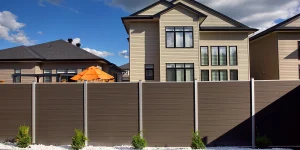

Aluminum WPC Fence

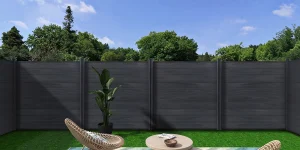

Co-extrusion WPC Privacy Fence

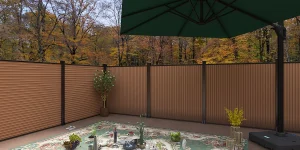

Slat Wall Fence

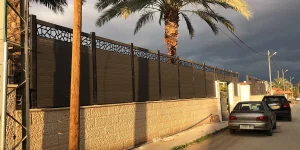

Mid-trellis Fence

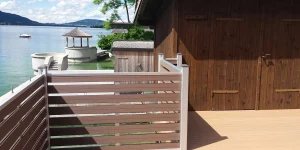

Full-trellis Fence

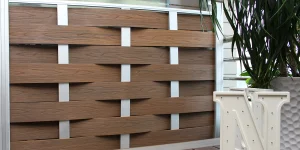

Woven Fence
